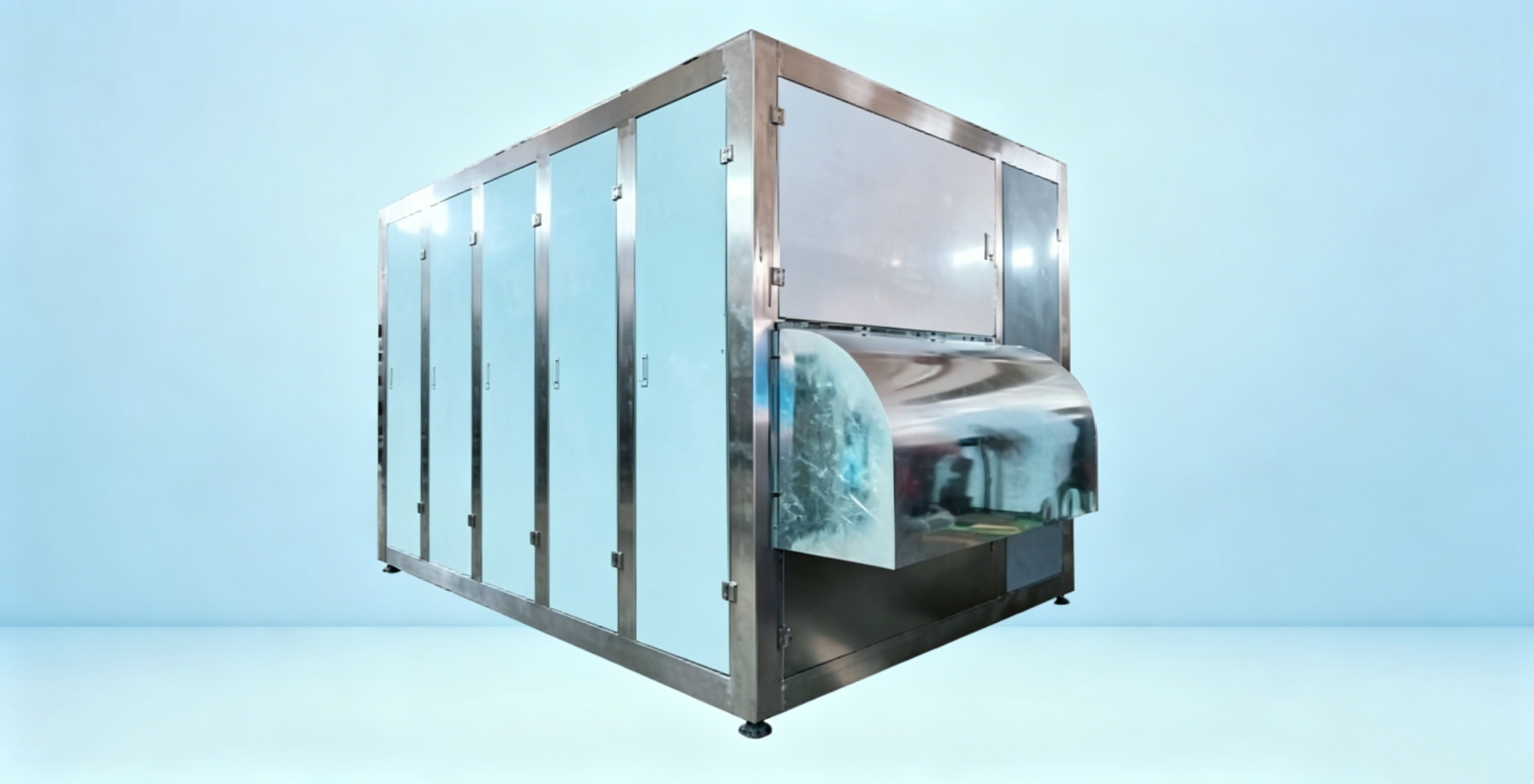

Cluster Filter Machine

Product Overview

Diatomite pre-coating equipment coats diatomite on filter cartridges. The filter pump sends contaminated coolant into filter cartridges and pressurizes the liquid. Dirty liquid is forced through filter elements, while solid impurities and pre-coated diatomite are intercepted on the surface of filter cartridges. Purified coolant flows out through pipelines. When internal pressure hits the set threshold, filtration is suspended. Compressed air performs backwashing on filter cartridges. After the system completes filtration and residue drying, clean coolant flows back to the sewage tank, and filter residues mixed with diatomite are discharged into residue collection carts. Filter cartridges support automatic backwashing and repeated use.

Key Features

• Composed of frame, slag pressing system and multiple filter cartridges; matched with liquid storage tank, filter pump, liquid supply pump and diatomite pre-coating machine to form a complete filtration circulation system
• Brushed stainless steel outer shell, elegant appearance and easy daily cleaning
• Extra-large filtration area and ultra-high filtration precision compared with gantry filter presses
• Filter cartridges can be automatically back-flushed and reused repeatedly, lowering long-term operation costs
• Entire filtration and slag discharge process runs automatically, only regular inspection is needed without on-duty staff
• Closed filtration structure avoids coolant volatilization and workshop pollution
• Filter residues are fully dehydrated, minimizing subsequent waste treatment expenses
