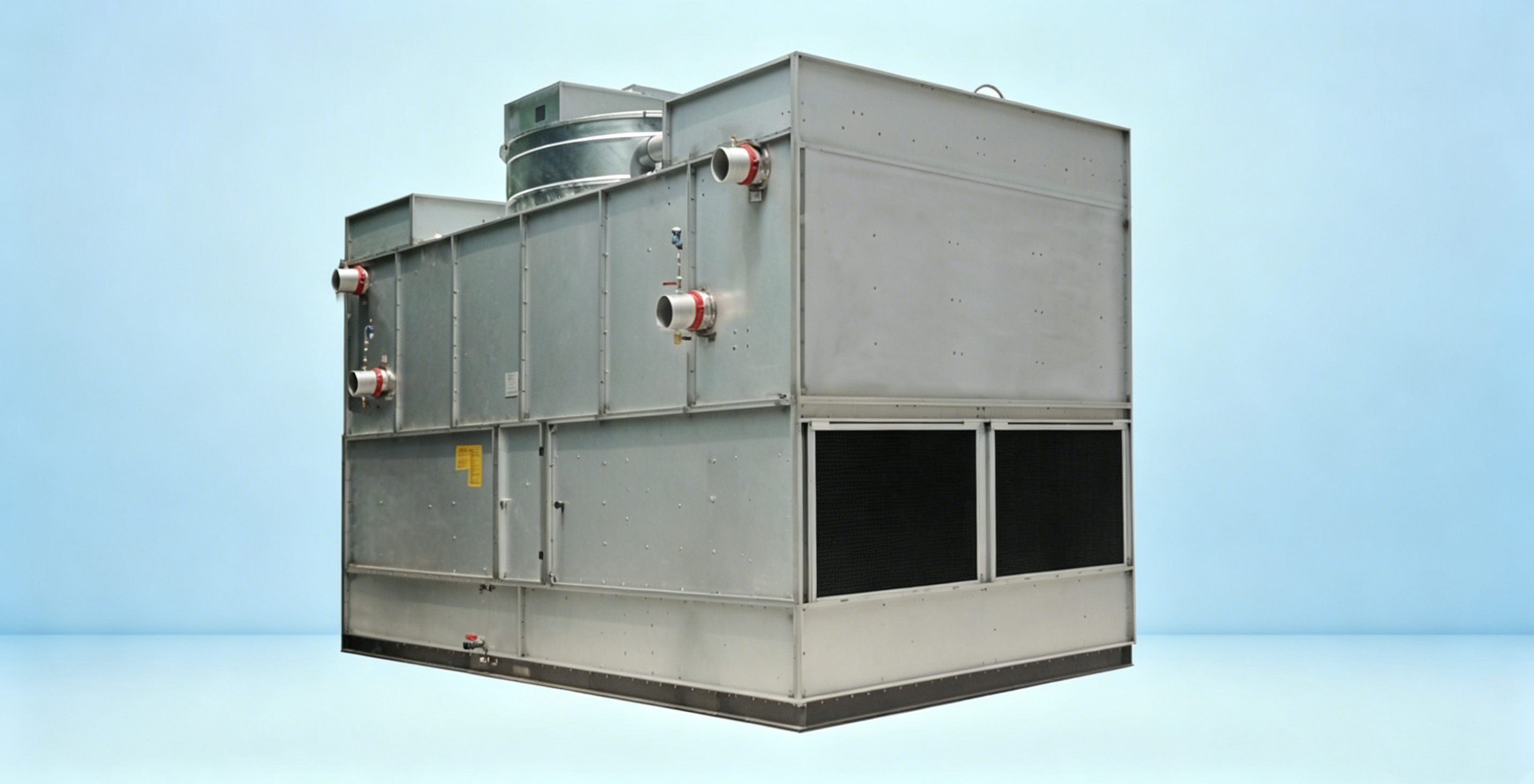

MSTFB Combined-Flow Closed Cooling Tower

Product Overview

Heated working fluid flows inside the coil wrapped by external spray water. Heat is conducted through the coil wall to form saturated vapor with spray water and cold air. The fan discharges waste heat to the atmosphere, and spray water flows back to the water tank for circulation. Spray water is cooled by PVC fillers during circulation, and cold air flows in the same direction with spray water to cool the coil mainly through sensible heat conduction.

Key Features

• High heat exchange efficiency: Large internal space brings smooth air circulation and efficient cooling capacity
• Anti-scaling structure: Cooling coil is installed above PVC fillers, same-direction air and spray water flow avoids dry points and scale formation on coil surface
• Low noise and low maintenance cost: Adopts low-speed wide-surface fans; famous brand vulnerable parts reduce failure rate and maintenance expenses
• Spacious internal space for convenient access to equipment inspection and maintenance
• Suitable for media with high inlet temperature (35-50°C) or projects with large cooling temperature difference (ΔT=5-20°C)

Technical Specifications
